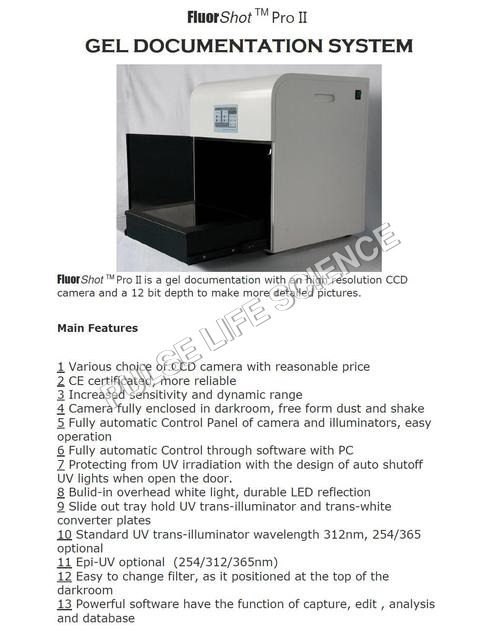

GEL DOCUMENTATION SYSTEM FLUORSHOT PRO II

GEL DOCUMENTATION SYSTEM FLUORSHOT PRO II
GEL DOCUMENTATION SYSTEM FLUORSHOT PRO II
Product Code : FLUORSHOT PRO II
Product Description

Specification


Model

FluorShot PRO II

Camera

CCD camera

Pixel Resolution

1,600 x 1,200

Pixel Size
(um V*H)

4.4 * 4.4

Bit Depth

12 bit

PC interface

IEEE 1394

Lens Type

 6× motorized zoom

Darkroom

 Light, tight, UV safety shutoff, CCD put in, free from dust and shake

Filter

 Standard F590 filter with layers coating (Consult us for specific requirement)

Operation panel

Full function control panel for zoom, focus, Iris and illuminator

Display panel

none

UV Transilluminator

Transmitted area: 21cm x 26cm  wave length: 312nm (254nm, 365nm selectable)

Tran-white

Uniform white transillumination converter plate

Epi-UV

Epi-UV illumination source (option)

Epi-white

 Durable LED reflection

Software

BIOTOP Gel Imaging System has the funtion of database, image capure, image edit and image analyse

Power

110/220V

Dimension (W*H*D)


430*410*560mm

Weight

22 kg

Certification

CE



Configuration

1 Dark room

2 12 bit, high resolution (1600 x 1200) Monochrome CCD Camera

3 Built-in trans-illuminator

4 6x motorized zoom   5. F-590 interference filter

6 1394 card and cable  7. RS232 Serial Cable

8 Power Supply Cable 9. Software and manual
